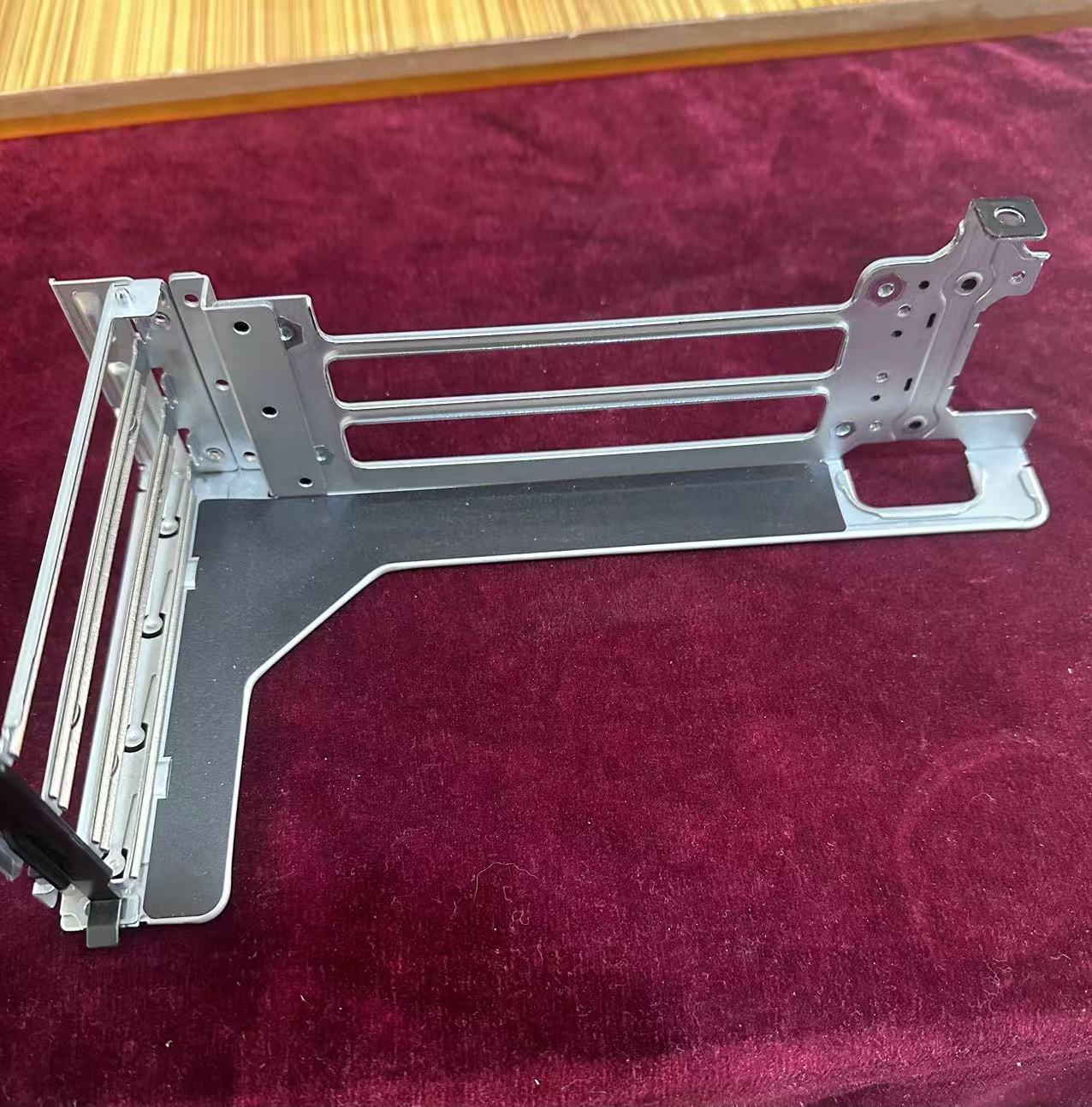

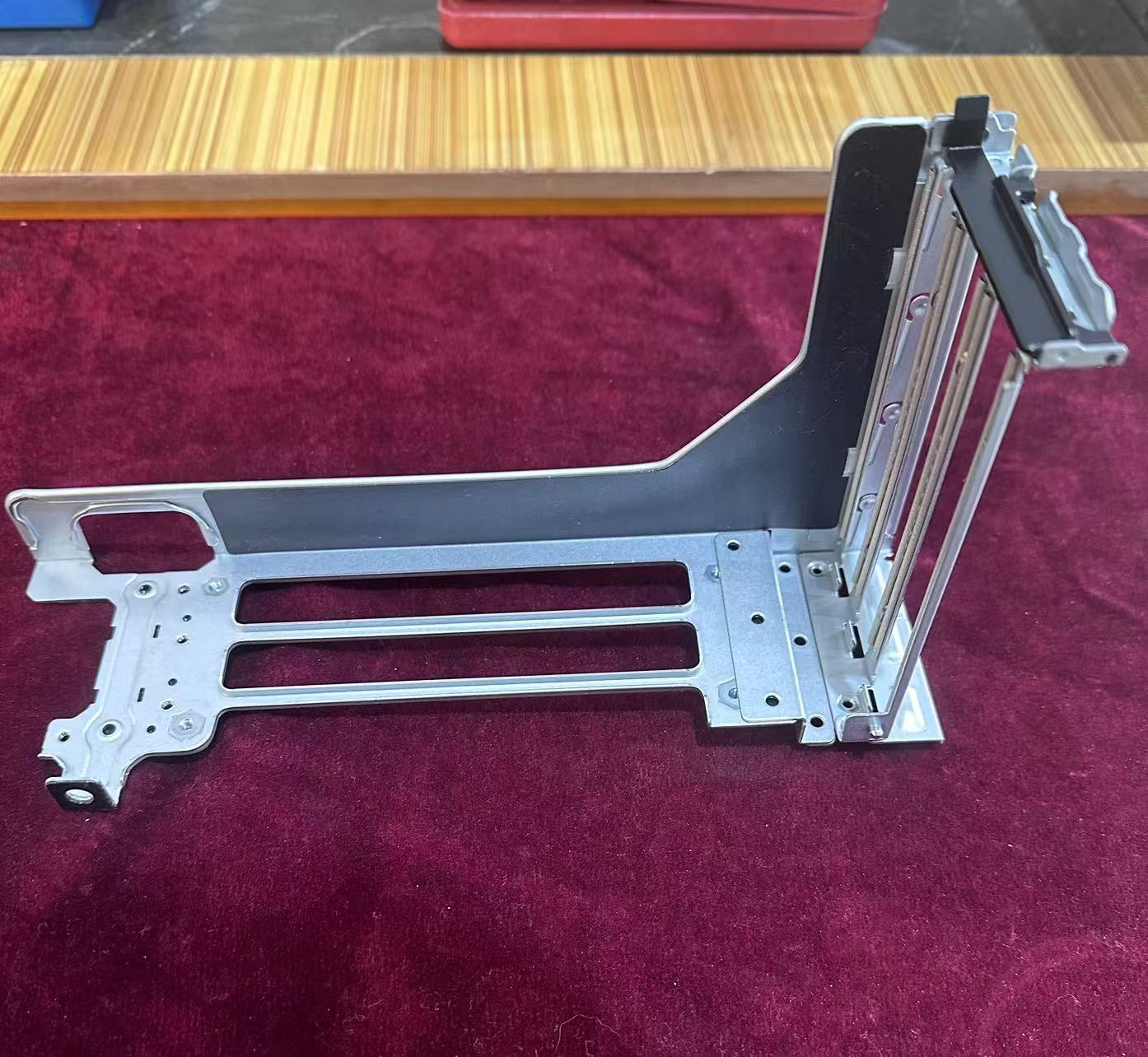

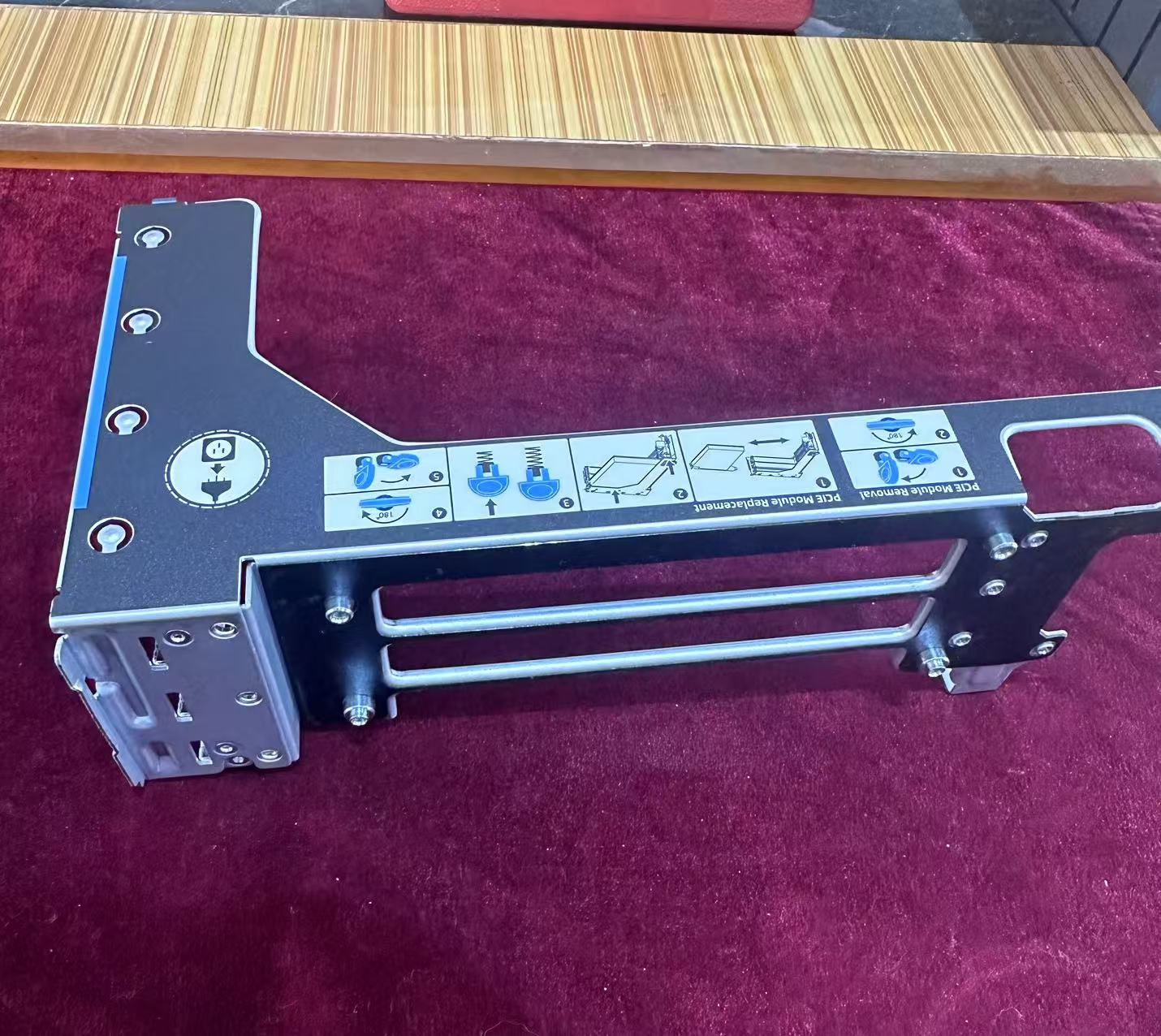

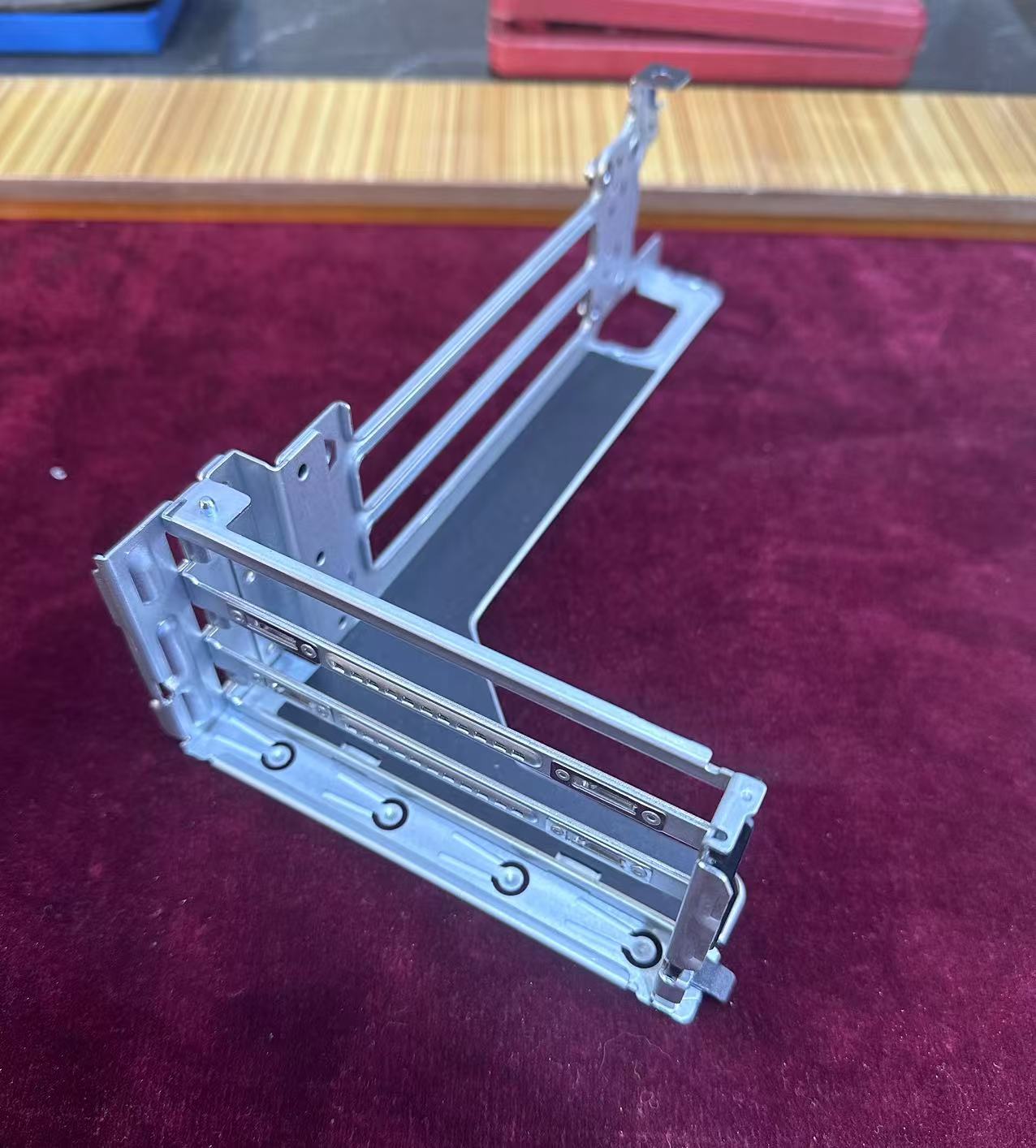

PCIE Bracket Module

 Basic concepts

PCIe: PCIe is a high-speed serial computer expansion bus standard used to connect various hardware devices such as graphics cards, network cards, storage controllers, etc.

PCIe Bracket Module: This is an expansion device that can provide additional PCIe slots, which increases the expansion capacity of the system.

2. Main Functions

Increase the number of slots: Additional PCIe slots are available, allowing more expansion cards to be installed in limited space.

Flexible configuration: Different numbers and types of PCIe slots (e.g. x1, x4, x8, x16) can be selected according to specific needs.

Improved performance: Improve the overall performance and stability of the system by optimizing the signal path and reducing interference.

Thermal management: Equipped with an efficient thermal solution to ensure that the expansion card maintains a good operating temperature even under high loads.

Easy to install and maintain: Designed to be plug and play, easy to install, easy to disassemble and maintain.

3. Structure and components

Motherboard interface: Connect with the PCIe slot on the motherboard, usually x16 or x8.

Expansion slots: Multiple PCIe slots are available, such as x1, x4, x8, x16, etc.

Power connections: Additional power connections are often required to support the power needs of the expansion card.

Heat sink: Includes fans, heat sinks, etc., which are used to maintain the operating temperature of the expansion card.

Fixing Bracket: Used to fix the expansion card on the module to prevent it from loosening.

4. Application Scenarios

Servers: In data centers and enterprise-class servers, a large number of expansion cards are required to support various functions.

Workstations: For workstations such as high-performance computing and graphics processing, PCIe bracket modules can provide the necessary expansion capabilities.

Industrial automation: In industrial control systems, various control cards and sensors need to be connected.

Video processing: In video editing and rendering systems, multiple high-performance graphics cards are required.

5. Considerations when selecting a PCIe bracket module

Compatibility: Make sure the selected module is compatible with your motherboard and other hardware devices.

Slot type: Select the appropriate PCIe slot type (e.g. x1, x4, x8, x16) based on your needs.

Heat dissipation capacity: Considering the heat dissipation design of the module, it can meet the heat dissipation requirements under high loads.

Power Requirements: Make sure that the module provides enough power to meet the needs of all expansion cards.

Brand and quality: Choose a brand with good reputation and reliable quality to ensure long-term stable operation.

Physical size: Make sure the module is sized to fit your chassis and leave enough space for installation and maintenance.

Installation Steps

1. Prepare tools: screwdriver, electrostatic bracelet, etc.

2. Power off: Make sure your computer is completely powered off and unplug the power cord.

3. Open the case: Remove the side panel of the case to expose the motherboard.

4. Mounting bracket: Insert the PCIe bracket module into the PCIe slot on the motherboard and fix it with screws.

5. Connect the power supply: Connect additional power cords as needed.

6. Install the expansion card: Insert the expansion card into the slot of the PCIe bracket module and fix it with screws.

7. Connect the heat sink: Install a fan or other heat sink if needed.

8. Close the chassis: Reattach the chassis side panels.

9. Test: Reconnect the power supply and boot the computer to check if all expansion cards are working properly.
